keeping rainwater HDPE liner&geomembrane
Basic Info
Model No.: 1.0mm
Product Description
Product description
In some areas of the country methane gas occurs naturally and can percolate into buildings, causing a potential gas explosion if ignited. Methane gas can also migrate from active or closed landfills. In these areas of risk, geomembrane liners can be placed under the concrete foundations and floors. Any gas that is generated under the building is transported under the liner (usually in a sand and perforated pipe layer) and then vented safely to the outside of the building.
keeping rainwater HDPE liner&geomembrane
Product | High quality HDPE liner film, HDPE geomembrane | ||
Standard | GM13-smooth | Certifitcation | CE/ISO/BTTG/TRI |
Thickness | 0.2mm-3.0mm | Technology | Blowing |
Width | 2m-8m | Material | HDPE/LDPE/LLDPE |
Length | 50m-100m | Original | China |
keeping rainwater HDPE liner&geomembrane
Smooth HDPE geomembrane-GM13(ASTM) technical data | |||||||||||
Properties | Test Method | Test Value | |||||||||
0.75 mm | 1.00 mm | 1.25 mm | 1.50 mm | 2.00 mm | 2.50 mm | ||||||
Thickness (min. ave.)· lowest individual of 10 values | D5199 | nom -10% | nom -10% | nom -10% | nom -10% | nom -10% | nom -10% | ||||
Density (min.) | D 1505/D 792 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 | ||||
yield strength | D 6693 | 11 kN/m | 15 kN/m | 18 kN/m | 22 kN/m | 29 kN/m | 37 kN/m | ||||
break strength | 20 kN/m | 27 kN/m | 33 kN/m | 40 kN/m | 53 kN/m | 67 kN/m | |||||
yield elongation | 12% | ||||||||||
break elongation | 700% | ||||||||||
Tear Resistance (min. ave.) | D 1004 | 93 N | 125 N | 156 N | 187 N | 249 N | 311 N | ||||
Puncture Resistance (min. ave.) | D 4833 | 240 N | 320 N | 400 N | 480 N | 640 N | 800 N | ||||
Stress Crack Resistance (2) | D 5397 | 300 hr. | |||||||||
Carbon Black Content - % | D 4218 | 2.0-3.0% | |||||||||
Oxidative Induction Time (OIT) (min. ave.) |
|
|
|
|
|
|
| ||||
(a) Standard OIT | D 3895 | 100 min. | |||||||||
(b) High Pressure OIT | D 5885 | 400 min. | |||||||||
Oven Aging at 85°C |
|
|
|
|
|
|
| ||||
(a) Standard OIT (min. ave.) - % retained after 90 days | D 3895 |
55% | |||||||||
(b) High Pressure OIT (min. ave.) - % retained after 90 days | D 5885 |
80% | |||||||||
UV Resistance |
|
|
|
|
|
|
| ||||
High Pressure OIT (min. ave.) - % retained after 1600 hrs | D 5885 |
50% |
Packing & Shipping
For geomembrane, in order to avoiding water when shipping on the boat, we specially use a thin layer plast firm to package the geomembane in the side, then white or black woven bags for outside, paper tube inside, easy to install.
Marking our label or as per client request, loading them into container safely at our factory, make all goods arriving clients no damage, keep perfect. They are packed in the woven bags 50m/roll,100m/roll or follow your demand
Shipping: load container directly from our plant by truck, then go to the port, than go your site by sea.

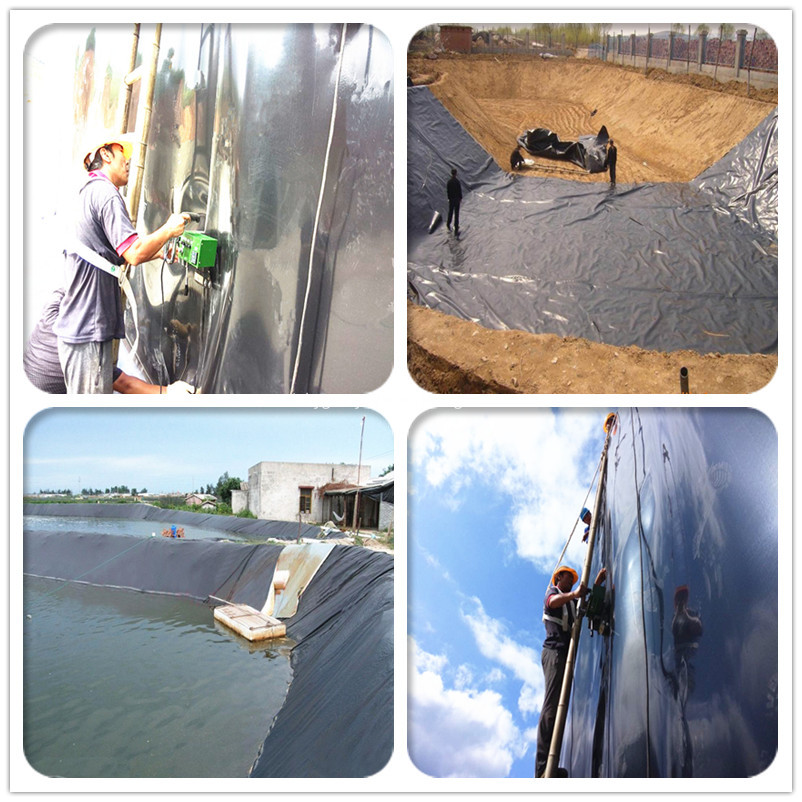

Applications: Features
- Irrigation Ponds, Canals, Reservoirs, & Ditches 1,Excellent physical and mechanical performance
- Landfills & Canals 2,High tearing resistance
- Agricultural Applications 3,Good deformation adaptability
- Municipal Applications 4,High puncture resistance
- Aquaculture & Horticulture 5,High aging resistance
- Liners & Covers 6,Good ageing resistance
- Landfill Liners, Covers, & Caps 7,long work life
- Liquid Containment 8,high and low temperature resistance
- Wastewater Lagoon Liners
- Mining-Heap Leach & Slag Tailings
- Liners for Golf Courses & Decorative Ponds
- Potable Water Reservoirs
- Tank Linings
- Brine & Processed Water Applications
- Water & Wastewater Treatment & Containment
Certifications
- CE
- ISO 9001 and ISO1400
- China Famours Brand and Other certificates
Company Profile
Shandong Tianhai New Materials is a leading manufacturer and marketer of the world geosynthetics lining products and services.
Specialized in HDPE/LDPE/LLDPE smooth and textured geomembrane, geotextile, drainage sheet, drainage composoite, GCL, self-adhesive waterproofing material, geogrid, with superior quality.
ISO9001, ISO14001, GB/T28001, CE certified .We get MSDS report and special CICC certificate for China railway projects. We are known by USA TRI and England BTTG
Our products had been exported to UK, the Philippines Australia, Italy, Madagascar, Mexico, UZ, Russia,Indonesia,Jordan,Iraq,Afghan,Libya, Sweden, Mongolia, India-
Other Accessories products that you maybe interested in:
Such as 2.0mm welding machine 900, 1.0mm welding machine 800, Welding torch, Satefy Products, Safety helmet, Safety shoes, Falling protection, Eye protection, body protection
FAQ
1.Q: What's about your production capacity?
A: We produce 10 x 40ft container per day for geomembrane.
2.Q: How about your delivery time?
A: Within 7-14 days after deposit, we always deliver the goods according to customer's requirement.
3.Q: What's about the minimum order quantity?
A: The MOQ is 5000m2, customer can mix different sizes in one 20GP. We suggest at least 20GP,as by our exporting experience, 20GP container sea freight is more economic.
4.Q: How about quality guarantee of your tires?
A:1) Material Purchase Control. Our Material are imported from Iran and Saudi Arabia. Those country specializing in better raw material.
2) Advanced production equipment, producing ASTM specification data.
4)We could provide you TRI or BTTG test report if you need.
5.Q: Do you have stock?
A: All tires we send to customers are new tires. We don't have any stock to ensure customers use best new tires and new patterns.
6. Q: Terms of payment
A:1). First time cooperation, we can accept 30% TT deposit, the balance should be paid against copy of B/L within 10 days.
2). By irrevocable LC at sight.
7.Q: What certificates do you have?
A: CE, ISO, SGS, TRI, BTTG, MSDS
Shandong Tianhai New Materials produces any kind of geomembrane specifications, if you are interested in ,contact us with no hesitate. We will reply you immediately. Hope we build a flourishing long- lasting business.
